Steel wire rope, chain and accessories

Steel wire rope

Steel wire rope is a very useful type of tool that is not only used for lifting purposes but also in many industrial applications. Steel wire rope is produced with different weavings, structures, materials and grades and therefore there are more than 1000 different types of wire ropes considering the surface coatings and wire profiles. Takinboxel excels in stainless steel rigging including Stainless steel hooks of all kinds, stainless steel shackle of all kinds, stainless steel turnbuckles, stainless steel master and connecting links.

DEMAG
DEMAG
VITAL chain block
VITAL chain block
Chinese wire rope
Chinese wire rope
Usha Martin wire rope
Usha Martin wire rope
KITO hoist
KITO hoist
Crosby chain accessories
Crosby chain accessories
Kiswire rope
Kiswire rope
Gustav Wolf wire rope
Gustav Wolf wire rope

Takin Boxel

  • بست سیم بکسل
  • اتصالات سیم بکسل
  • اتصالات استیل سیم بکسل
  • سیم بکسل استیل
  • اتصالات زنجیر

Takin Boxel is a major importer of all kinds of steel wire rope, chain and accessories in Iran. Takin boxel with over 25 years experience in importing, distributing and providing customers with technical supports associated with steel wire rope, chain and all sorts of lifting accessories.

Takin boxel تکین بکسل excels in all kinds of stainless steel rigging for wire rope and chain slings as well. Both grades of stainless steel 304 , stainless steel 316 in both metric and inch sizes are available in Takin boxel. we are ready to provide the customers not only with the items but also lead them to use the right size, right capacity and right grade of steel wire rope, chain, hoist, chain block and all different kinds of lifting accessories. Takinboxel is importer and distributor of all kinds of stainless steel rigging and lifting equipment including Steel wire rope, chain and lifting accessories. With over 15 years' experience in lifting and a large stock of rigging, steel wire rope and chain accessories, we are properly equipped with the means to provide you with a centerwide range of products including all kinds of Steel wire rope for industrial and mining purposes, Chain in different grades of carbon steel

5 to 7 PVC coated wire rope
5 to 7 PVC coated wire rope
Lang lay non rotating wire rope
Lang lay non rotating wire rope
7X19 stainless steel wire rope
7X19 stainless steel wire rope
IWRC Usha martin excavating wire rope
IWRC Usha martin excavating wire rope
4 to 6 PVC coated wire rope
4 to 6 PVC coated wire rope
GUSTAV WOLF PAWO F7S wire rope
GUSTAV WOLF PAWO F7S wire rope

TYPES OF WIRE ROPE

Elevator Rope

Elevator Rope

Elevator wire rope is a very common type of wire rope that is used for cabin fastening in elevator industries. Elevator wire rope سیم بکسل آسانسوری is made of carbon steel and usually has 8 stands. in the core of elevator wire rope in most cases fiber cores are used however IWRC is another common type of core for elevator wire ropes ...

Non-rotating wire rope

Non-rotating wire rope

Non-rotating wire rope سیم بکسل نتاب is a type of steel wire rope that resists twisting in both clock-wise and counter clock-wise directions. Non rotating wire ropes are used on tower cranes and are made of carbon steel. Non rotating wire rope سیم بکسل نتاب is usually manufacture ...

Excavating wire rope

Excavating wire rope

Excavating wire ropes سیم بکسل حفاری are made of carbon steel and are available in various sizes and brands. excavating wire ropes consist of 6 strands and are produced both with fiber core and steel wire rope core. Excavating wire ropes سیم بکسل حفاری is produced in vari ...

Stainless steel wire rope

Stainless steel wire rope

Stainless steel wire ropes سیم بکسل استیل are produced using different grades of stainless steel rods and are usually available in two structures. for lower diameters stainless steel wire ropes are usually available in 7X7 structure which is in fact made by weaving 6 stands around the metal strand core. stainless steel wire ropes سیم بکسل استیل is used in lower diameters as 7X7 structure and i ...

Winch and hoist wire rope

Winch and hoist wire rope

Winch and hoist wire rope سیم بکسل جرثقیل is a carbon steel wire rope that can be produced both with fiber and steel core. Winch and hoist wire rope is a similar structures to the excavating wire ropes. hoist wire rope سیم بکسل جرثقیل can be used with both fiber core and IWRC core depending on the size of hoist and application. hoist wire rope ...

PVC Coated wire rope

PVC Coated wire rope

Coated Gym Wire Ropes سیم بکسل روکش دار are usually specified using two numbers, the first number is the internal wire rope diameter without PVC coating and the second number is the final outer diameter with PVC coating. Coated gym wire ropes have a carbon steel wire rope as core and therefore are not water resistant. the main reason for using PVC coated wire ropes is tom prevent the direct contact bet ...

News and Articles
Machinery Wire rope

Different industrial machines use different grades and structures of steel wire rope, that is the reason why in many cases wire ropes are classified based on industry. some industries require higher tensile strength of wire rope and in some usual applications even lower grades of steel wire rope and stainless steel wire rope would suffice.

Visual inspection of steel wire rope

Inspection of steel wire rope can be classified under different characteristics that are mostly done by metrial and hardness analysis. However, there are some primary facts that help determine the quality of steel wire rope by visual inspection. the first important factor is for the wire rope wires to be flexible and also act like a spring to return to the primary position after the load is omitted. another visual factor is to check if the wires are all in good shape and absent surface cracks. coating if any is also another factor that can be subject to visual inspection of steel wire rope.

بررسی کیفیت سیم بکسل

Stainless steel wire rope accessories

Takinboxel Co. has a significant stock of stainless steel wire rope accessories including stainless steel wire rope clips, stainless steel thimbles and stainless steel riggings, chain and wire rope accessories. different shapes, designs and standards of stainless steel lifting chain, rigging and lifting accessories are available in our stock and ready to be dispatched upon your request.

stainless steel wire rope accessories
Sales Department

Different grades of stainless steel rigging and lifting accessories

There are many different grades of stainless steel consisting of higher or lower percentages of metal elements. The most common grades of stainless steel that are used to produce industrial machines, parts or equipment are G304, G310, G312 and G316. Each grade of stainless steel has specific chemical and mechanical properties. Among these 4 grades only two of them, G304 and G316, are used to produce stainless steel rigging and lifting accessories. Both these grades have equal tensile strength but are different in environmental corrosion resistance and magnetic field interest. SSWRC Hardware Sdn Bhd has a broad stock of all grades of stainless steel rigging, chain, wire rope and lifting accessories.

Stainless steel chain accessories have lower tensile strength than carbon steel rigging, however, they are highly resistant against humidity, water and rare acids in the environment. Therefore, stainless steel rigging and lifting accessories are not only used centerwidely in humid places such as coastal and marine areas but also in association with stainless steel wire rope and stainless steel chains. Stainless steel rigging does not require any surface coating as opposed to carbon steel rigging and wire rope accessories.

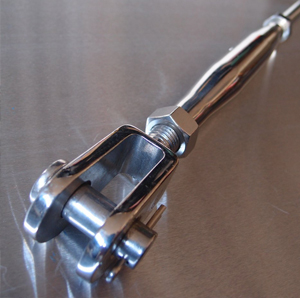

stainless steel G304 rigging

Stainless steel G304 rigging

Stainless steel G304 rigging consists of high percentages of valuable metal elements including Chrome and Nickel. More specifically 18% Chrome and 8% Nickel are used in the chemical compound of stainless steel G304 Rigging. These two highly active metals are incumbent to lose electrons more than steel and therefore, while being exposed to humidity or rare acids it is not steel but these two metals that lose electrons. In this way the chemical properties of steel stay intact and the stainless steel riggings are not stained. Stainless steel G304 is not only used to produce rigging but can be found in many different industries even pump and industrial machinery parts.

Stainless steel G316 lifting accessories Kuala Lumpur

Stainless steel G316 lifting accessories

Stainless steel G316 riggings have specifically 2% of Molybdenum which is a valuable and highly active metal is added to Chrome and Nickel to reach a better resistant stainless steel lifting accessories. Having the extra metal element in chemical properties, stainless steel G316 rigging and lifting accessories can also resist against chlorides. That is however not the only benefit of using G316 stainless steel lifting accessories. In many industries magnetic interest of parts can be a problem and stainless steel G316 lifting accessories have no magnetic interest which is another benefit of using them.

Carbon Steel rigging and chain accessories

Carbon Steel rigging and chain accessories

Carbon Steel rigging and chain accessories are very strong lifting parts and have relatively higher strength and tensile than stainless steel chain and wire rope accessories. More specifically Carbon steel riggings can have tensile strength of higher than 1180 N/mm2 while stainless steel lifting accessories can hardly provide 700 N/mm2 tensile. Most carbon steel riggings are made of G80 carbon steel that is a medium range carbon steel with high and average strength and ductility. These riggings provide the tensile strength of about 800 N/mm2 and are usually Zinc or Galvanized coated due to their vulnerability against humidity or rain acids.

Stainless Steel wire rope and chain accessories
Hook

Hook
Hooks قلاب are available in various Grades and various shapes. hooks are among mutua

Shackle

Shackle
Shackle شگل is a mechanical and useful type of chain accessory that is also used in w

Turnbuckle

Turnbuckle
Turnbuckle مهارکش is a type of mechanical tool that is used in order to increase t

Lifting chain

Lifting chain
Lifting chains زنجیر بار are very useful mechanical instruments for lifting purp

Wire rope clip

Wire rope clip
Wire rope clip بست سیم بکسل is a type of wire rope accessory. wire rope clips

Connecting link

Connecting link
Connecting link رابط زنجیر is a common type of chain accessories that is availa

metal sheet clamp

metal sheet clamp

Drum hook

Drum hook
